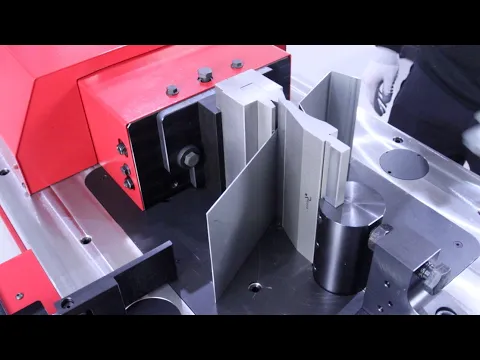

Samples of jobs done with Horizontal Press Brake PP200CNC
BRAND NEW 20 ton Nargesa PP200CNC Horizontal Press Brake. Includes CNC Control Panel with the latest 4.0 technology, for a more comfortable and accurate regulation. It allows us to carry out different operations such as bending, folding, cutting, cold shaping, expand and reduce tubes, notching, inlaying, assemble... with maximum precision and speed
The versatility of the best Horizontal Hydraulic Press Machine Nargesa PP200CNC makes it possible for us to make a great deal of forging parts and all kinds of operations in all kinds of materials: pipe, flat bar, several profiles, rods... Folding operations with wrought iron machines permit to completely bend the parts or pieces unlike conventional flat bar section bending machines. Stretching and reducing pipes on the ends in order to make parts that fit or weld later. Cutting, piercing and punching flat bars or metal sheets turn this horizontal bending press into a punching shears machine. Many workshops use these presses to stretch and form different kinds of profiles. It is also a solution to bend different profiles at different radius and keeping the ends straight, like when manufacturing handles and flanges. Pipe notching to assemble to another one at 90º. Cold forge uses horizontal presses to make and form different shapes of balosters...
Its robustness, versatility, easy handling and 4.0 Technology are just four of the best features our hydraulic horizontal bending machine hasworking processes.
All Nargesa’s Products are according to CE regulations for the manufacturing of industrial machinery.
Our customers say
-
We are very pleased with our new acquisition, the Horizontal Hydraulic Press Brake PP200CNC, which will allow us to bend, fold, cut, cold form, widen and reduce, flare, stamp, and assemble. We have expanded our services to our customers and the work we can achieve with it!
— Francisco Manuel Bergera - Manager at Ingeniería Iradi S.L.U. (Spain)
Technical features
Horizontal Bending Press Brake PP200CNC has been manufactured in a 60mm thick welded steel monoblock, stabilized and mechanized. Its robustness, versatility and easy handling are just three of the best features our hydraulic horizontal bending machine has.
ADVANTAGES
- NEW Control Panel: Very intuitive and easy to handle, with the latest 4.0 technology and a more comfortable and accurate regulation.
- The new ECO mode of our latest products saves energy and contributes to the conservation of the environment.
Nowadays, we know the remarkable importance of saving energy. This is the main reason why our new machinery incorporates an "ECO mode" that automatically disconnects the electrical parts that generate greater energy consumption if a period of inactivity is detected. Thus, when it is necessary to restart the operation, all you have to do is press the pedal to continue working.
We strongly believe that this feature is a core point both for the savings of our clients and for the sustainability of our planet, since we are a company very committed to the environment. - Quick start-up: The machine is shipped fully assembled, it is only required to connect it to the electrical supply and run it.
- Versatility: Nargesa PP200 has a catalog with a great deal of optional tooling. (See at the bottom of the page in optional tooling and sample video).
- Easy fabrication of tooling: The customer himself or any toolmaker can manufacture dies and punches.
- Folding operation with no risk of damaging the punches and dies with thick materials unlike conventional press brakes.
- Folding flat bars and sheets into completely close shapes. Conception of this horizontal bending press brake allows to make folding operations impossible to be carried out on a conventional press brake.
- Fast tool change, punches and dies: This change does not take more than 30 seconds most of the times.
STANDARD TOOLING: Horizontal press brake PP200 includes the complete 4V’s folding die. (See bottom of the page in standard accessories).
Technical Features of the Horizontal Hydraulic Press Machine
- Working force: 20Ton.(200KN)
- Working speed: 9.8mm/s
- Return speed: 35mm/s
- Max stroke: 245mm
- Repeatability: 0.05mm
- "ECO mode" Start/Stop in period of inactivity.
- ESA S625 CNC control
- Technology 4.0.
- Storage of up to 10,000 programs.
- Programming of 50 different angles in the same piece.
- Programming in mm or inches.
- Library of dies and punches.
- Programming in more than 20 languages.
- Automatic control of angle to fold in degrees.
- Manual or automatic operating mode.
- Automatic springback correction.
- Counter of pieces.
- Diagnosis of alarms on the screen.
- Automatic warning of preventive maintenance.
- Remote connection included.
- 7" color touch screen
- Safety Double acting hold pedal.
- Mechanically Guided Piston.
- Pressure regulator.
- Tooling support table: 600x1170 mm.
- Working height: 950 mm.
- Engine power: 2.2 KW/3 HP a 1400 r.p.m.
- Electric Tension: 230/400 V three-phased.
- Intensity: 9/5 A.
- Hydraulic pressure: 50 a 215 Kg/cm2.
- Hydraulic pump: 7,5 litres/minute.
- Tank Capacity: 27 litres.
- Dies support shelf included.
- Palletized lower bench to easily transport the machine up to its working or storage site.
- The machine is sent completetly assembled.
- Packing included: Wooden pallet NIMF15 and three layer cardboard apt for suitable for sea freight.
All our products are manufactured in our facilities in Spain. Hydraulic and electrical components are all standard from the best leading European trademarks with technical support all over the world: Rexroth, Bosch, Roquet, Schneider Electric, LG, Telemecanique, Pizzato, etc...
Optional accesories for Horizontal Hydraulic Press Brake PP200CNC
Automated Gauge for the PP200CNC Press Brake
The ALL-NEW Automated Gauge for the PP200CNC Press Brake is an accessory designed and manufactured to get the greatest performance out of the Nargesa Horizontal Hydraulic Press Brake PP200CNC. This Automated Gauge for the Nargesa PP200 CNC horizontal Press Brake offers increased productivity and a reduction in the time it takes for positioning in the various work cycles. This innovative design provides the capability of automatically positioning the X-axis during different operations programmed and calculated using the ESA S625 CNC control. This approach significantly helps enhance the operating features as well as the quality of work done with this machine.
The Automated Gauge for the PP200CNC allows single or serial parts to be produced with greater accuracy, speed and repeatability compared to the previous manual system.
REF: 140-16-01-50000
Flat bar cutting tooling 100x10mm PP200
Flat bar and metal sheet cutting die up to 100mm through a maximum thickness of 10mm in mild steel.
REF:140-16-01-00014
MAX. CUTTING LENGTH: 100mm
MAX. CUTTING THICKNESS: 10mm
WEIGHT: 23 Kg
Optional tooling.
Promecampunch holder PP200
Punch holder for all kind of punches for Promecam bending or folding press.
REF:140-16-01-00023
MAX. FOLDING LENGTH: 161mm
L LENGTH: 276 mm
Compatible with any Promecam punch.
WEIGHT: 14Kg
Optional tooling
Download (1.17 MB)
Inverted Promecam-holder PP200
Punch holder for all kind of punches for Promecam bending or folding press with inverted position.
REF: 140-16-01-00039
MAX. FOLDING LENGTH: 161mm
Compatible with any Promecam punch.
WEIGHT: 19,8 Kg.
Optional tooling
Punch Promecam PS.135.85.R08 PP200
Promecam punches to bend and manufacture complex part.
There are a lot more shapes. Please consult the manufacturer.
REF: 140-16-01-00030
FOLDING LENGTH: 161mm
WEIGHT: 3,2 Kg.
Optional tooling.
Punch Promecam P.95.35.R5
Promecam punches to bend and manufacture complex part.
There are a lot more shapes. Please consult the manufacturer.
REF: 140-16-01-00031
FOLDING LENGTH: 161mm
WEIGHT: 2,3Kg.
Optional tooling.
Punch Promecam PS.134.30.R08
Promecam punches to bend and manufacture complex part.
There are a lot more shapes. Please consult the manufacturer.
REF: 140-16-01-00032
FOLDING LENGTH: 161mm
WEIGHT: 2,7Kg.
Optional tooling.
Punch Promecam PK.135.85.R08
Promecam punches to bend and manufacture complex part.
There are a lot more shapes. Please consult the manufacturer.
REF:140-16-01-00038
FOLDING LENGTH: 161mm
WEIGHT: 4,4Kg.
Optional tooling.
Folding Punch P.70.30.R1,5
Folding punches to bend special pieces of small sizes ideal for bending closed geometries
REF: 140-16-01-00025
MAX FOLDING LENGTH: 100mm
PUNCH DEGREES: 30º
PUNCH DIAMETER: 70mm
WEIGHT: 3Kg
Optional tooling.
Folding Punch P.40.80.R1
Folding punches to bend special pieces of small sizes ideal for bending closed geometries
REF: 140-16-01-00026
MAX. FOLDING LENGTH: 60mm
PUNCH DEGREES: 80º
PUNCH DIAMETER: 40mm
WEIGHT: 3Kg
Optional tooling.
Folding Punch P.22.80.R1
Folding punches to bend special pieces of small sizes ideal for bending closed geometries
REF: 140-16-01-00027
MAX. FOLDING LENGTH: 60mm
PUNCH DEGREES: 80º
PUNCH DIAMETER: 22mm
WEIGHT: 3Kg
Optional tooling.
Folding die T80.25.35
Promecam dies to fold sheets, flat bars or thicker plate sections
REF: 140-16-01-00036
FOLDING LENGTH: 161mm Max. 35º
V25: From 1,5 to 5 mm sheet
WEIGHT: 4Kg.
Optional tooling.
Folding die M80.45.40
Promecam dies to fold sheets, flat bars or thicker plate sections.
REF: 140-16-01-00041
FOLDING LENGTH: 161mm Max. 45º
V40: From 3 to 8mm sheet
WEIGHT: 6,2Kg.
Optional tooling.
Folding die M75.85.63
Promecam dies to fold sheets, flat bars or thicker plate sections.
REF: 140-16-01-00033
FOLDING LENGTH: 161mm Max. 85º
V63: From 5 to 10mm sheet
WEIGHT: 5Kg.
Optional tooling.
Folding die M80.85.80
Promecam dies of diferent openings to fold sheets, flat bars or thicker plate sections.
REF: 140-16-01-00034
FOLDING LENGTH: 161mm Max. 85º
V80: From 6 to 12mm sheet
WEIGHT: 6Kg.
Optional tooling.
Folding die M95.80.100
Folding die M95.80.100
Promecam dies of diferent openings to fold sheets, flat bars or thicker plate sections.
REF: 140-16-01-00035
FOLDING LENGTN: 161mm Max. 80º
V100: From 8 to 15mm sheet
WEIGHT: 9Kg.
Optional tooling.
Folding die MK103.80.125
Promecam dies of diferent openings to fold sheets, flat bars or thicker plate sections.
REF: 140-16-01-00040
FOLDING LENGTN: 161mm Max. 80º
V125: From 12 to 20mm sheet
WEIGHT: 12,4Kg.
Optional tooling.
Small radii holder PU.67.14-S
European style R1 bending tool holder. (For radii from 3 to 7,5 mm)
REF: 140-16-01-00042
Folding length: 161 mm
Weight: 2 Kg.
Optional tooling
Radius elements for small radii holders PU.67.14-S
Radius elements to fold. Made of C45, a high quality, medium grade steel, with constant mechanical properties and good external chrome resistance.
Maximum capacity: 400kN/m.
Tonnage: 400 kN/m max.
For its use it requires the PU.67.14-S Small radius holder.
Please refer to the following radius chart:
Download (133.65 KB)
Big radii holder PU.67.14
European style R1 bending tool holder. (For radii from 8 to 50 mm)
REF: 140-16-01-00043
Folding length: 161 mm
Weight: 1,80 Kg.
Optional tooling
Radius elements for large radii holders PU.67.14
Radius elements to fold. Made of C45, a high quality, medium grade steel, with constant mechanical properties and good external chrome resistance.
Tonnage: 800 kN/m max.
For its use it requires the PU.67.14 large radius holder.
Please refer to the following radius chart:
Download (182.21 KB)
Baluster forming die 01 PP200
Die to form cold forging balusters for grills, gates, fences, handrails, etc... For other shapes or capacities, request the manufacturer.
REF: 140-16-01-00001
MAX WIDTH: 20mm
THICKNESS: 4,5,6,8 mm
DIE LENGTH: 656mm
WEIGHT: 21 Kg
Optional tooling.
Baluster forming die 04 PP200
Die to form cold forging balusters for grills, gates, fences, handrails, etc... For other shapes or capacities, request the manufacturer.
REF:140-16-01-00004
SQUARE SIZES: 5,6,8,10,12,14,16,18mm
DIE LENGTH: 600mm
WEIGHT: 20,5 Kg
Optional tooling.
Baluster forming die 08 PP200
Die to form cold forging balusters for grills, gates, fences, handrails, etc... For other shapes or capacities, request the manufacturer.
REF:140-16-01-00008
MAX. WIDTH: 20mm
THICKNESS: 4,5,6,8mm
DIE LENGTH: 650mm
WEIGHT: 19,5 kg
Optional tooling.
Baluster forming die 09 PP200
Die to form cold forging balusters for grills, gates, fences, handrails, etc... For other shapes or capacities, request the manufacturer.
REF:140-16-01-00009
SQUARE SIZES: 5,6,8,10,12mm
DIE LENGTH: 522mm
WEIGHT: 22 Kg
Optional tooling.
Baluster forming die 10 PP200
Die to form cold forging balusters shaped parts for grills, so called “belly top railing”. For other shapes or capacities, please cosult the manufacturer.
REF:140-16-01-00010
SQUARE SIZES: 12mm
DIE LENGTH: 1165mm
WEIGHT: 50Kg
Optional tooling.
Baluster forming die 11 PP200
Die to form cold forging balusters for grills, gates, fences, handrails, etc... For other shapes or capacities, request the manufacturer.
REF:140-16-01-00011
SQUARE SIZES: 6, 8, 10, 12mm
DIE LENGTH: 760mm
WEIGHT: 32,5 Kg
Optional tooling.
Baluster forming die 20 PP200
Die to form cold forging balusters for grills, gates, fences, handrails, etc... For other shapes or capacities, request the manufacturer.
REF:140-16-01-00020
SQUARE SIZES: 12x12mm
CIRCUMFERENCE SIZE: 90mm
WEIGHT: 11 Kg
Optional tooling.
Forming die adaptor PP200
It is an exchangeable fitting device for the forming dies, suitable for each of the different baluster forming tools. It is advisable to get one in order to work with the specified dies.
REF: 140-16-01-00029
WEIGHT: 3,1kg
Optional tooling suitable for all forming dies.
Bar clamps forming die PP200
Clamp forming die, used to manufacture the clamps used to join different forging bars with no need to get them welded.
REF:140-16-01-00028
MAX. CAPACITY: 25x5mm
WEIGHT: 9 Kg
Optional tooling.
Download (1.55 MB)
Twisted bars forming die PP200
Die to bend metal plate, flat bar or square bar to obtain a nice braid twisted effect. It’s very used to make fences and grills
For flat bars from to 6, 12 and 14mm. (For different sizes, please ask the manufacturer)
REF:140-16-01-00013
MAX CAPACITY: Square 14mm
MIN. CAPACITY: 2x40mm metal sheet
WEIGHT: 18 Kg
Optional Tooling
Download (1.59 MB)
Ring forming die PP200
Die to form rings or English banister railing, used as ornamental piece in forging railings, gates, fences, etc ... for bars bonding. For other sizes and applications consult the manufacturer.
REF:140-16-01-00003
MAX. WIDTH: 50mm
THICKNESS: 6mm
OUTER SIZES: 90mm
WEIGHT: 9.3 Kg
For different sizes, please ask the manufacturer
Optional tooling.
Download (1.57 MB)
Punching die PP200
Punch-holder die, compatible with our NARGESA brand punches.
REF:140-16-01-00022
GOOSENECK: 54mm
DISTANCE FREE FOR USE: 95mm
MAXIMUM ROUND PUNCHING CAPACITY: 43mm
MAXIMUM SQUARE PUNCHING CAPACITY: 35mm
MAXIMUM RECTANGULAR PUNCHING CAPACITY: 20X34mm
MAXIMUM OVAL PUNCHING CAPACITY: 21X40mm
It will always depend on the thickness to be pierced.
WEIGHT: 52Kg
Optional tooling.
Round, square, oval and rectangular punches and dies PP200
At Nargesa we own a wide catalog for punches and dies of all kinds. If the size the cuetomer needs is not in the list, we manufacture it. In the PDF file you will be able to see all kinds and sizes we have.
Optional tooling
Download (888.51 KB)
Pipe notching tool PP200
Dies for notching pipes from Ø16 to a Ø50mm. It crops the pipe end so it could be joined perpendicularly to another pipe. In the PDF file you will be able to see all kinds and sizes we have
Optional tooling.
Download (508.27 KB)
Rounding corner tool PP200
Die to get metal sheet corners rounded at different radius. In the PDF file you will be able to see all kinds and sizes we have
Optional tooling.
Download (403.02 KB)
Metal tabs forming tool PP200
Tool to fabricate all kinds of tabs, with or without perforation, straight or rounded... they are very used as clamps, handles etc. Starting from a metal strip, there will be obtained one piece of the desired length at every stroke. In the PDF file you will be able to see all kinds and sizes we have
Optional tooling.
Download (485.83 KB)
Clamp forming die PP200
Die to form all kinds of clamps. This tooling is manufactured according to the user’s needs thus it is required to have a technical drawing or a sample piece.
REF:140-16-01-00024
MAX. CAPACITY: 100x4mm
Non-standard optional tooling.
Tool to shape pipe ends PP200
Basic die to modify the ends of the tubes for their assembly. You can make all kinds of shapes and flaps accoprding to the customer needs. For special forms consult the manufacturer.
REF: 140-16-01-00016
WEIGHT: 110 Kg approx.
Optional tooling.
Diameter reduction tools for PP200
Composed by the Reduction cone, Reducing clamp holder to reduce tube and the reduction clamp.
This accessory is adapted to the Tooling to shape pipe ends, to perform the operation of reducing the ends of the tubes, for its coupling.
We can find the different sizes in the following PDF file:
Download (481.14 KB)
Diameter expansion tools for PP200
Composed by the Clamp Holder to Expand, Expansion Mandrel and the Expander Clamp.
This accessory is adapted to the Tooling to shape pipe ends, to perform the operation of expanding the ends of the tubes, for its coupling
We can find the different sizes in the following PDF file:
Download (385.09 KB)
Bending tool for big radius PP200
Die to form curves in flat bars, pipes, bars or profiles at big radius. It’s perfect for bending small series or special parts without requiring a specific custom mold.
REF: 140-16-01-00006
MAXIMUM BAR CAPACITY: 40mm or 1 1/2"
MAXIMUM PIPE CAPACITY: 80x80 mm or 3"
MINIMUM DIEMETER: 300mm.
MAXIMUM DIAMETER: there is no maximum.
Optional tooling.
Die to straighten out profiles PP200
Tool used to bend straight profiles or parts. It is adjustable to different capacities according to the profiles.
REF:140-16-01-00017
MAXIMUM CAPACITY: H 150mm
WEIGHT: 72Kg.
Optional tooling.
Included accesories for Horizontal Hydraulic Press Brake PP200CNC
FOLDING DIE AT 161 mm. V 16,22,35,50 mm
Bending die for up to 161 mm with 4 openings (16, 22, 35, 50 mm). This multi-V die allows bending sheet metal from 1 mm to 8 mm.
Reference: 125-16-01-00006
V 16: Sheet metal from 1 to 3 mm · M.460.R/16
V 22: Sheet metal from 2 to 4 mm · M.460.R/22
V 35: Sheet metal from 3 to 6 mm · M.460.R/35
V 50: Sheet metal from 4 to 8 mm · M.460.R/50
MAXIMUM BENDING LENGTH: 161 mm
MAXIMUM BENDING THICKNESS: 8 mm
Standard tooling supplied with the machine
Download (424.88 KB)
Download (1.82 MB)
BENDING PUNCH AT 161 mm AND 80º
80º bending punch. The punch with an outer diameter of 70 mm allows for creating completely closed shapes with a minimum inner wing of 75 mm.
Reference: 131-16-01-00041 · P.70.80.R1.5
MAXIMUM BENDING LENGTH: 161 mm
Standard tooling supplied with the machine
Download (19.47 MB)
Download (2.97 MB)
Download (556.98 KB)
+ Info for Horizontal Hydraulic Press Brake PP200CNC
ESA S625 CONTROL PANEL
Nargesa horizontal press brakes have a 7” color touch screen control, very intuitive and easy to handle, with the latest 4.0 technology and a more comfortable and accurate regulation.
We only have to introduce the material, the thickness, the bending angle, choose the punch and the die from the library and the control will program the rest of the parameters automatically.
These are some of the most relevant features of this control system.
- Stores up to 10,000 programs.
- Up to 50 different angles on the same piece can be programmed.
- Dimensions may be programmed in inches or millimetres.
- A library of available dies with the possibility of programming new ones.
- Library of materials and thicknesses available with the possibility of programming new options.
- The CNC can be supplied in more than 20 different languages.
- Automatic control of the angle to fold, in degrees.
- 9.8mm/s working speed and 35mm/s reversing speed.
- Manual or automatic operation.
- Automatic elastic recovery correction (springback).
- Piece counter.
- 4.0 Technology.
- On-screen alarm diagnostics.
- Preventive maintenance warning.
- Can be remotely connected by the manufacturer without having to travel to the machine site.
- 7” colour touch-screen with 800 x 480 resolution.
- 128 MB silicon disk.
- 2 analogue inputs, 12 bit resolution.
- 16 digital inputs (24 Vdc).
- 16 digital outputs (24 Vcc, 0.7 A max.) Protected against overloads and short circuits.
- 1 RS232 serial port.
- 1 CAN port with 9 D-Sub F connector contacts.
- 24 Vdc power source.
- 1 USB port.
- 1 Ethernet port.
Dimensions of the machine Horizontal Hydraulic Press Brake PP200CNC
Dimensions of the machine: 660x1180x1130 mm.
Weight: 665 Kg.
Tariff Item Code: 84622210
Other features:
- Palletized base to move it easily to the working site or storage.
- The machine is delivered completely mounted.
Characteristics of the packaging Horizontal Hydraulic Press Brake PP200CNC
Nº Pallets: 1.
Width: 930 mm.
Length: 1300 mm.
Height: 1500 mm.
Volume: 1,81 m3
Nett weight: 665 Kg.
Gross Weight: 712 Kg.
Tariff Item Code: 84622210
Other features:
- Palletized bench to move the machine easily to the working site or storage.
- The machine is delivered completely mounted.
- Packaging with wooden pallet and 3-layered cardboard, suitable for sea freight.
- Optional: Complete wooden packaging NIMF15.
Uses of the machine Horizontal Hydraulic Press Brake PP200CNC
There are multiple uses for the Horizontal Bending Press PP200CNC Nargesa. The large number of tools that complement it allow several operations in different materials and in different types of profiles. Bending and folding flat bars with horizontal press will enable the manufacturing of completely closed pieces that would be difficult to obtain by using other machines. Straightening and bending large profiles to conform bus chassis, prototypes with complicated curves and bends, straightening faulty profiles ... Cutting flat bars or metal sheets a lot faster than any other saw or cutting machine. Punching, boring, drilling or punching plates to make perforations on fences, doors, windows and other parts. Cutting and shaping are other features of this versatile forming press for manufacturing flanges and clamps for fastening pipes. Flaring tube or pipe for assembly and subsequent welding to produce exhaust pipes, water pump distributors, metal furniture, railings tube... Widening and reducing the pipe ends permit joining different pipes to make berths, chairs, irrigation systems, tents, greenhouses etc... Folding and bending solid rods will enable the user to manufacture all kinds hooks, chain links and also form balusters out of square or round bars, tubes for the manufacturing of parts for cold forging, railings, fences, gates, doors, railings... Making hinges is another widely used application in this type of hydraulic press. As you can see, the uses of Hydraulic Horizontal Bending Press Nargesa PP200CNC are really limitless.
